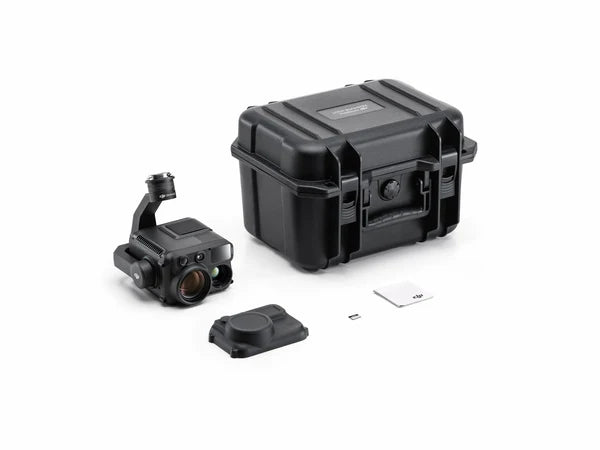

DJI Zenmuse H30T

DJI H30T Series: Advanced Imaging for Demanding Operations

The DJI H30T Series delivers powerful imaging capabilities for public safety, search and rescue, inspections, and other demanding professional applications. Designed for reliable performance in challenging conditions, it integrates with the DJI Matrice 400 RTK, 350 RTK and Matrice 300 RTK platforms when used with the RC Plus controller.

Advanced Imaging Capabilities

• High-Resolution Thermal Imaging: 1280 × 1024 resolution at 30 fps, temperature measurement from -20°C to 1600°C, and up to 32× digital zoom.
• 48MP Wide-Angle Camera: Features a 1/1.3-inch CMOS sensor, Night Scene mode, and ISO sensitivity up to 409,600 for improved low-light performance.
• 40MP Zoom Camera: Equipped with a 1/1.8-inch CMOS sensor, 34× optical zoom, and up to 400× digital zoom for detailed imaging at a distance.

Enhanced Operational Performance

• Laser Range Finder: Measures distances up to 3,000 metres, with accuracy within 20 metres at a distance of 1,000 metres.
• Near-Infrared (NIR) Auxiliary Light: Provides illumination across an approximately 8-metre diameter at 100 metres, supporting operations in low-light and dark environments.

Key Improvements

• Improved Night Imaging: Night Scene mode enhances visibility in low-light conditions for both the wide-angle and zoom cameras.
• Greater Zoom Detail: The zoom camera features double the resolution of its predecessor, along with a 47% increase in optical zoom capability and extended digital zoom.
• Versatile Multi-Sensor Imaging: Combines thermal, wide-angle, and zoom imaging capabilities to help professionals gather critical information from a single payload.
